Game Modes

All game-specific surfaces (a.k.a. “Game Modes”) are stored in the folder q100viz/interaction. Each game mode is represented as a custom class with similar generic functions. Each class is initiated to an object in session.py to be able to globally access it.

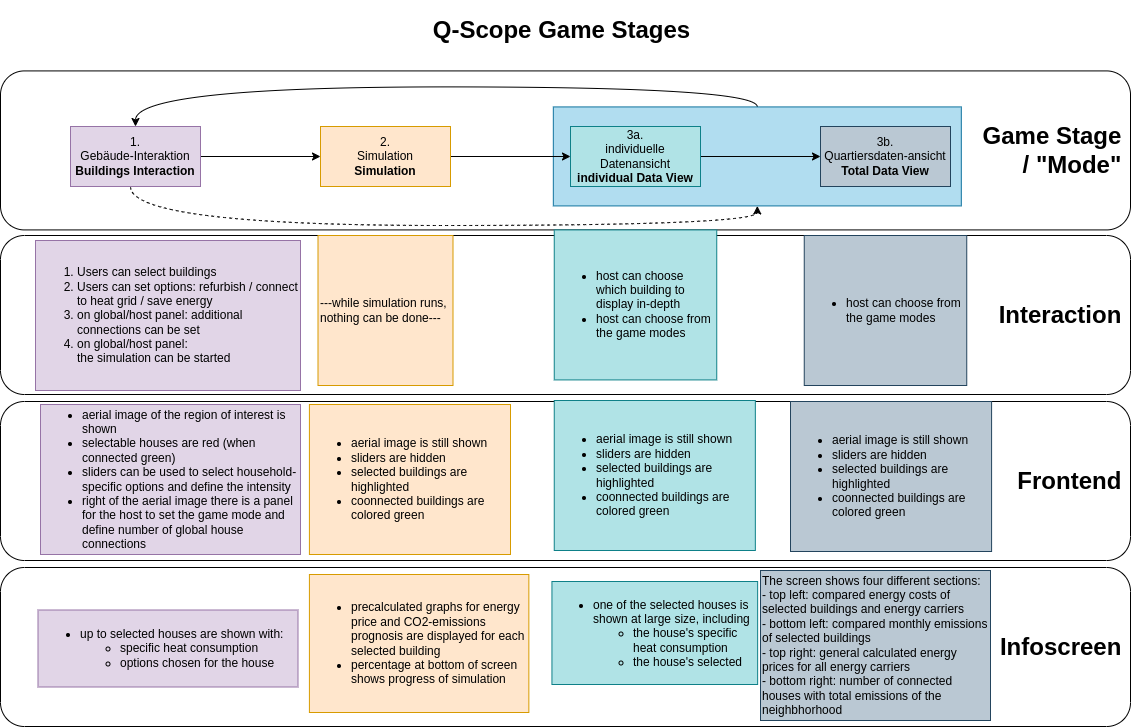

• In the QUARREE100 use case there are different machine states, defined by the files in q100viz/interaction/ → these are the modes the program is running at (per time)

• implemented modes are:

  • Interaction

  • Simulation

  • Data View

  • (Calibration - for Debugging)

After each simulation, a new “Game Iteration” or “Round” is started (which will also be indicated on the infoscreen). Each Round has its own data output and data of different rounds are exported to the same graphs for comparison. This way, users can compare the results of different (refurbishment/heat grid connection/energy-saving) actions.

Game Mode Generic Functions

• The __init__ function is seldomly used, since it will be run in the beginning of the script (in session.py), before the variables (e.g. grid) are initialized.

• The activate function is called automatically in the game loop, when session.active_mode changes to this object in the game loop. It should not be called manually!. This function can be used to define which graphical parts shall be displayed, by setting session.show_polygons etc to true or false. The same can be done for each slider individually.

• process_event is a function that takes care of mouse events (for debugging purposes, it is possible to select and alter the buildings via mouse L/M/R clicks).

• process_grid_change is the most important function in each of the game mode classes, as it takes care of the interaction possibilities: It is called each time a grid change is received from cspy. See the buildings interaction mode code as an example.

Some cells can be programmed to trigger additional events, like leaving the current game mode. This is done via tables in q100viz/settings/. Read more on how to program link functions to cells here.

Hint

For debugging purposes, the Game Modes can be switched using input keys:

• 3 activates the Buildings Interaction

• 4 starts the simulation

• 5 enters the individual data view

• 6 enters the total (neighborhood) data view

• C starts the Calibration Mode

1. Buildings Interaction Mode

In the Input Mode, users can set household-, buildings- global parameters. They can leave the mode placing a token on the “simulation mode” selector.

Buildings Interaction

The process_grid_change function of this mode make sure that, after each incoming grid change, the whole grid is iterated using the following routine:

1. check for intersections with selected (non-white) cells and polygons

2. according to the rotation of the cell, set the selection of an overlapping building to true and set its cell value to the ID of the cell. (IDs of the building will later be used for the grouping of buildings - and to allocate them to the users)

3. for slider handles: update the selected feature of the building with the current slider value

4. for mode selectors: enable countdown timer for next mode to start

5. for global/scenario handles: connect additional buildings to the heat grid. There is a dedicated dataframe for these additionally selected buildings called session.scenario_selected_buildings that excludes all user-selected buildings, so they can be specifically referred to. These buildings will be set ‘selected’.

6. Finally, environment- and buildings-information will be sent via UDP to the infoscreen.

Buildings Mode Display

The Buildings Interaction Mode is the most feature-rich display. It shows the basemap with buildings polygons and the heat grid on top. Selected buildings are highlighted by the user-specific color (according to the ID of the token used for selection). On the right, there is a global section containing some functional cells to force-connect a selectable number of buildings to the heat grid. It contains interaction possibilites for the change of the game modes and sliders for individual setting of the buildings’ decision features.

2. Simulation

The “Simulation Mode” is the second mode to be run, once all users have selected and specified their households. In this mode, the frontend will start GAMA in headless mode (no GUI) a subprocess to run the agent-based-model. The users will have to wait until the simulation finished, and the only thing the frontend does is forwarding status information via UDP from GAMA to the infoscreen.

The Simulation can be started by either placing a token on the specified cell on the right side of the frontend (or using the S key). It will generate an experiment API file for GAMA according to this scheme: https://gama-platform.org/wiki/Headless#simulation-output and run the provided model file using the gama-headless.sh. These two files are to be set up in config.py:

config.py

'GAMA_HEADLESS_FOLDER' : '/home/qscope/GAMA/headless/',
'GAMA_MODEL_FILE' : '../q100_abm/q100/models/qscope_ABM.gaml',

ATTENTION: make sure to set the user rights of gama-headless.sh executable via chmod u+x gama-headless.sh

Setting up the simulation

Upon initialization of this game stage, a new thread is started for the gama simulation to run (later), so the rendering of the pygame canvas will not be stopped when the subprocess begins.

In order to start the simulation, it first has to be set up, using the simulation.setup() function. Only after that it can be started by setting session.active_mode = simulation.

The function accepts the following Input Parameters: * input_max_year (int): until which year should the simulation run? providing “2045” will make the simulation run up until 2044-12-31. * export_neighborhood_graphs (bool) disable export of individual graphs, for debugging purposes

The simulation setup algorithm logs the simulation start time and defines the output path to export the results in the following manner:

1. A new output folder is created for the current game iteration round using the current OS time: qScope/data/outputs/output_YYYYmmdd_HH_MM_SS

tree view of output folder

  project qScope
  └───data
      └───outputs
          └───output_YYYYmmdd_HH-MM-SS
          |   └───connections
          |   └───emissions
          |   └───energy_prices
          |   └───snapshot
          └───buildings_clusters_YYYYmmdd_HH-MM-SS.csv
          └───buildings_power_suppliers.csv
          └───console-outputs-null.txt
          └───simulation_parameters_YYYYmmdd_HH-MM-SS.xml
          └───simulation_outputsnull.xml

Read more about the simulation results in the ABM section.

2. An xml file necessary to start the simulation in headless mode is created from the session.environment parameters. Here we store initial values for certain variables in GAMA. These parameters are:

• Alpha scenario

• Carbon price scenario

• Energy prices scenario

• Q100 OpEx prices scenario

• Q100 CapEx prices scenario

• Q100 Emissions scenario

• Q100 Emissions scenario

• Carbon price for households?

The xml struct is created in a function called make_xml and saved in the output folder using the time stamp of the simulation start. simulation_parameters_YYYYmmdd_HH-MM-SS.xml

A set of different scenarios can be found in the data/scenarios folder in the form of .csv files. These all regard different energy price scenarios under which the model can be investigated.

In short, the Input Data for the simulations in QUARREE100 are defined in the qScope/data/ folder via the files scenario_X.csv. Which one of these files is taken, will be defined in session.py in the environment['active_scenario_handle'] entry. The file this entry points to, will be read in simulation.setup(), and transfered to an xml file to eventually set the simulation’s input data accordingly.

example of a simulation scenario to serve as input data for GAMA variables.

name	type	value	name_human_readable	value_human_readable
alpha_scenario	string	Dynamic_moderate	Anteil monatlicher Energieausgaben am Haushaltsbudget	Moderat ansteigend (ca. 7 - 10 %)
carbon_price_scenario	string	B - Moderate	CO2-Bepreisung	Moderat ansteigend (ca. 25 - 350 € / Tonne CO2)
energy_price_scenario	string	Prices_2022 1st half	Energiepreisentwicklung (ohne politische Maßnahmen)	Preisentwicklung 2022
q100_price_opex_scenario	string	12 ct / kWh (static)	Q100-Wärmeversorgung: Betriebskosten	Dauerhaft 12 ct / kWh
q100_price_capex_scenario	string	5 payments	Q100-Wärmeversorgung: Investitionskosten	Ratenzahlung (5 x 1000 €)
q100_emissions_scenario	string	Declining_Linear	Q100-Wärmeversorgung: Emissionsverlauf	Jährlich abnehmend (100 - 0 g / kWh)

Note

For debugging purposes, some random N buildings can be marked as selected and force-connected to the heat grid for the simulation by starting the frontend script with the input flag --select_random N (int). See more about the frontend startup flags here.

3. After setting up the simulation input data, simulation.running will be set True, which causes the simulation to actually be executed (once) in the dedicated thread via run_script() within simulation.run(). The process of the latter function will sty on hold until the subprocess is done.

4. Once the subprocess is done, matplotlib graphs are created from the output data and the paths of these files will be send via UDP to the infoscreen to be displayed there in the next game stage. Some historic data will be added to these graphs for comparison. Pre-calculated data, created using one of the auxiliary scripts, can be added for comparison.

Simulation Mode View

There is no possibility for user interaction in this mode. The frontend only forwards information on the in simulation process in percent to the infoscreen, where that number is displayed.

3a. Individual Data View

This game stage is used to focus on single selected buildings and show the created graphs on heat consumption, CO2-emission and energy costs of that building on the infoscreen.

The interaction surface is constrained to the mode selectors and to four cells highlighted in the colors of the users - these can be used to focus on the building of the according user. The general basemap can not be used for interaction.

3b. Total Data View

The total data view mode is used to display all neighborhood data on the infoscreen displaying charts that compare the selected houses energy costs and emissions, as well as the overall energy cost development and the total amount of buildings connected to the heat grid.

All possible interaction is constrained to the game mode selectors.
